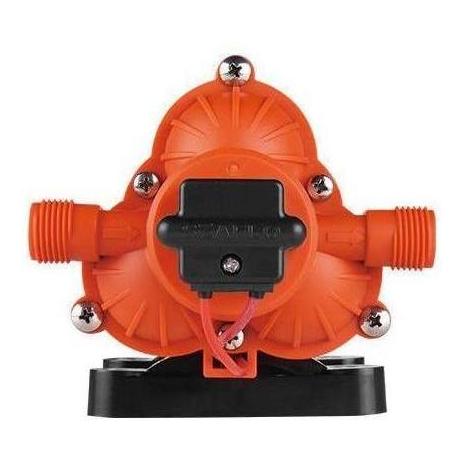

Seaflo 33 Series Diaphragm Pump 220V 11.3LPM @ 45PSI
The 33-Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. This 3-chamber diaphragm pump provides up to 3.0 gallons per minute and is capable of self-priming up to 6vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.
Specifications
- Voltage：12V/24V/115V/220V
- Open Flow：2.8-3.0GPM / 10.6-11.3LPM
- Shut-off Pressure：45PSI / 3.1BAR
- Priming Capabilities：6 feet (1.8 m) suction lift
- Max Recommended Temperature：140° F (60° C）Max.
- Material：EPDM(Valves) / Santoprene(Diaphragm)
- Ports：1/2"-14 MNPT
MORE FEATURES & BENEFITS
• Capable of supplying 2-3 fixtures
• Up to 3.0 GPM
• Self priming
• On-demand use
• Industry Standard mounting pattern
• Completely rubber mounting-base
• Adjustable pressure switch
• 16 AWG, 4.5"(11.4 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Seaflo 33 Series Diaphragm Pump 220V 11.3LPM @ 45PSI
Seaflo 33 Series Diaphragm Pump 220V 11.3LPM @ 45PSI
The 33-Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. This 3-chamber diaphragm pump provides up to 3.0 gallons per minute and is capable of self-priming up to 6vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.
Specifications
- Voltage：12V/24V/115V/220V
- Open Flow：2.8-3.0GPM / 10.6-11.3LPM
- Shut-off Pressure：45PSI / 3.1BAR
- Priming Capabilities：6 feet (1.8 m) suction lift
- Max Recommended Temperature：140° F (60° C）Max.
- Material：EPDM(Valves) / Santoprene(Diaphragm)
- Ports：1/2"-14 MNPT
MORE FEATURES & BENEFITS
• Capable of supplying 2-3 fixtures
• Up to 3.0 GPM
• Self priming
• On-demand use
• Industry Standard mounting pattern
• Completely rubber mounting-base
• Adjustable pressure switch
• 16 AWG, 4.5"(11.4 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
